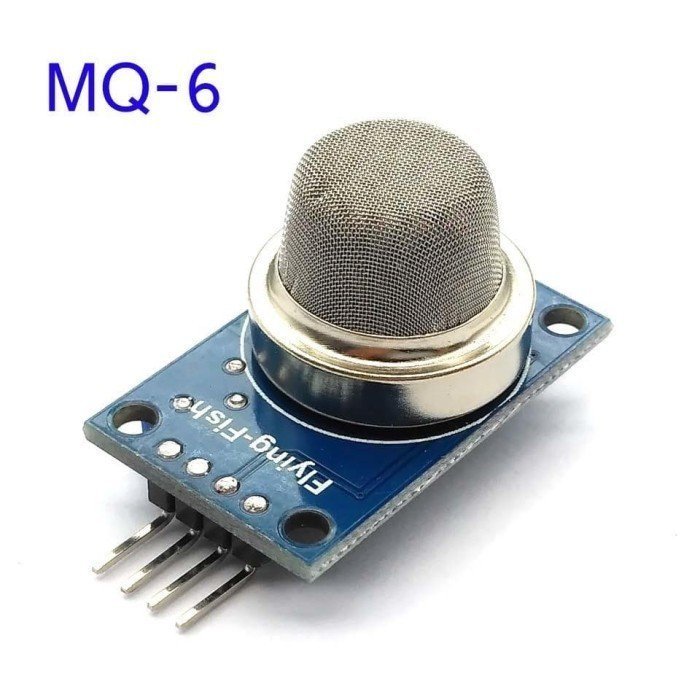

MQ-6 MQ6 Sensor Gas LPG Butane Propane mudah terbakar Module Arduino
Modul Sensor Gas MQ-6 LPG Butane Propane (MQ6 Gas Sensor, Sensor Kebocoran LPG Elpiji, Gas Leak Detector Module, Sensor Gas Flammable Arduino)
Halo Kawan Eazyfast!
Khawatir dengan risiko kebocoran gas LPG atau butana pada proyek dan perangkat elektronikmu? Jangan cemas, ciptakan sistem deteksi dini kebocoran gas yang aman dan responsif sekarang juga. Yuk, bangun sistem pengaman gas mandiri yang andal bareng Eazyfast!
FUNGSI UTAMA:
Modul sensor ini berfungsi untuk mendeteksi keberadaan dan mengukur tingkat konsentrasi gas mudah terbakar seperti LPG, propana, butana, hingga LNG di udara secara cepat dan akurat.
APLIKASI UMUM:
- Alat pendeteksi dan alarm kebocoran gas LPG rumah tangga maupun industri
--------------------------------------------
CATATAN :
- Harga tertera untuk 1 pcs (kecuali tertulis paket/set pada judul & varian).
- Jika produk bisa dimasukkan ke keranjang berarti barang ready stock, silakan langsung diorder saja
- Silakan order sebelum jam 15.00 WIB (Senin - Jumat) atau jam 12.00 WIB (Sabtu) agar pesanan dapat dikirim pada hari yang sama :)
- Estimasi penyiapan paket kurir Instant ± 1 jam (pada jam operasional toko)
- Jika perlu QTY banyak atau Foto stok asli boleh chat admin dulu ya :)
- Eazyfast Store berpengalaman menyediakan part teknik sejak 2017 dengan pengemasan aman (bubble wrap gratis), serta melayani pengadaan partai besar/B2B dengan harga khusus silahkan chat admin.
Note : Wajib sertakan video unboxing utuh tanpa jeda saat paket diterima sebagai bukti komplain jika ada ketidaksesuaian barang.
Rp15.700
5 tersedia
5 tersedia
Spesifikasi
Ukuran
| Weight | 0,05 kg |
|---|
Sensitive material MQ-6 gas sensor is used to clean the air in the lower Conductivity of tin dioxide (SnO2). When there is the environment in which the combustible gas sensor , conductivity sensor with increasing concentration of combustible gases in air increases . Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-6 gas sensor for propane , butane , liquefied petroleum gas sensitivity is high, natural gas and has a good sensitivity. This sensor can detect a variety of flammable gas , is a low-cost sensors for a variety of applications
Suitable for home or industrial LPG ( liquefied petroleum gas ) , butane , propane , LNG ( liquefied natural gas ) detection devices. Excellent resistance to ethanol vapor , smoke interference
Module Features :
1. using high-quality dual-panel design, with power indicator and TTL signal output instructions;
2. the switching signal having a DO (TTL) output and analog output AO ;
3. TTL output valid signal is low . ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
4. 0 ~ 5V analog output voltage , the higher the concentration the higher the voltage .
5. propane , butane , LPG, LNG has a good detection sensitivity.
6. there are four screw holes for easy positioning ;
7. Product dimensions : 32 (L) * 20 (W) * 22 (H)
8. has a long life and reliable stability
9. rapid response and recovery characteristics
